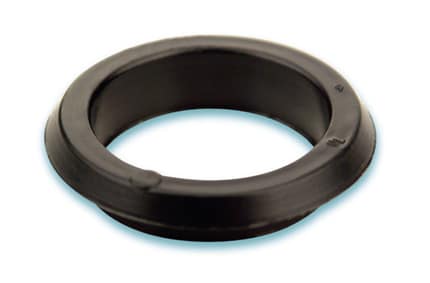

Heyco® UL Listed Thermoplastic Rubber Grommets

For Panel Thickness from .03˝ (0,8 mm) to .08˝ (2,0 mm) Mounting Hole Diameter Range: .500˝ (12,7 mm) to 1.250˝ (31,8...

Specifications

Part number and specification

MOUNTING HOLE DIAMETER		PART NO.	DESCRIPTION	PART DIMENSIONS

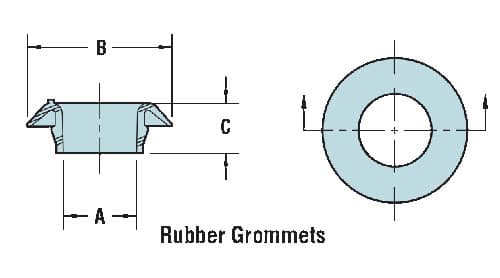

MOUNTING HOLE DIAMETER		Black		A Inside Diameter		B Head Diameter		C Overall Height
in.	mm.	Black		in.	mm.	in.	mm.	in.	mm.
.500	12,7	G1505	TG 500	.41	10,4	.81	20,6	.28	7,1
.625	15,9	G1506	TG 625	.52	13,2	.93	23,6	.31	7,9
.750	19.1	G1507	TG 750	.65	16,5	1.06	26,9	.35	8,9
.875	22,2	G1508	TG 875	.77	19,6	1.19	30,2
1.000	25,4	G1509	TG 1000	.89	22,6	1.32	33,5
1.250	31,8	G1510	TG 1250	1.12	28,4	1.60	40,6

Molded from Thermoplastic Rubber.

Material		Flex Temp (Thermoplastic Rubber)
Certifications		Listed under Underwriters’ Laboratories File E103541
Temperature Range		32°F (0°C) to 122°F (50°C)
