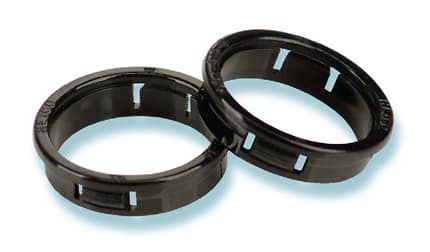

Heyco® Thin Panel Bushings

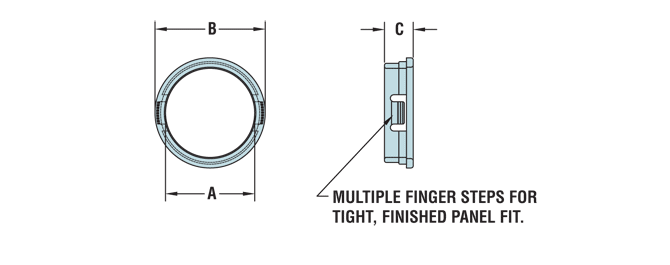

Multiple Locking Steps for Panels as Thin as .020″ (0,5 mm)
Mounting Hole Diameter Range: .218″ (5,5 mm) to .875″ (22,2...
Standard colors black and white. Consult Heyco for other colors.
*Consult Heyco for other mounting hole diameters. Our Axcell Rapid Response Team is ready to meet your requirements.
Material | Nylon 6/6 | |
---|---|---|
Certifications | Recognized under the Component Program of Underwriters’ Laboratories File E15331 | |
Certified by the Canadian Standards Association File 8919 | ||
Flammability Rating | 94V-2 | |
Temperature Range | -.4°F (-18°C) to 221°F (105°C) |
