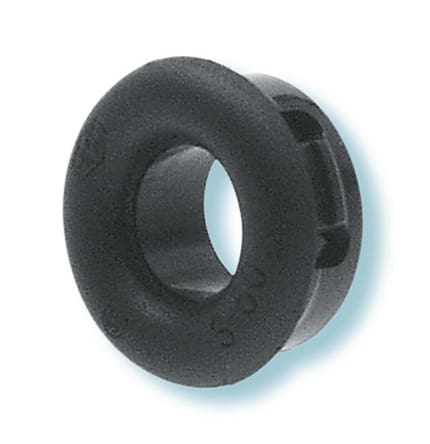

Heyco® Snap-In Smooth Bore Bushings

Mounting Hole Diameter Range: .500″ (12,7 mm) to 1.093″ (27,8 mm)
Download Datasheet
Specifications

Part number and specification

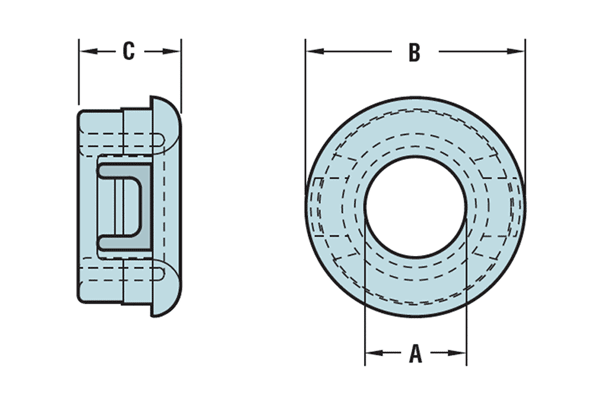

MOUNTING HOLE DIAMETER PART NO. DESCRIPTION PART DIMENSIONS CAD
Black A Inside Diameter* B Head Diameter C Overall Height
in. mm. in. mm. in. mm. in. mm.

Single Locking Step for Panel Thickness up to .062" (1,6 mm)
.500 12,7 2514 S 50 .25 6,4 .56 14,2 .27 6,9 CAD
.875 22,3 2540 S 87 .52 13,2 .98 24,9 .32 8,1 CAD

Multiple Locking Steps for Panel Thickness up to .125" (3,2 mm)
.625 15,9 2516 S 625-4 .25 6,4 .72 18,3 .44 11,2
.750 19,1 2535 S 750-5 .36 9,1 .91 23,1
.875 22,3 2552 S 875-9 .56 14,2 .97 24,6 .52 13,1 CAD
1.000 25,4 2554 S 1000-9 .60 15,2 1.19 30,2
1.093 27,8 2555 S 1093-10 .63 16,0 1.21 30,7
Standard color black. Consult Heyco for white and other colors. *Consult Heyco for other Mounting Hole and Inside Diameter configurations. Our Axcell Rapid Response Team is ready to meet your requirements.



Features

  • Extra internal insulating sleeve creates a smooth bore and prevents locking fingers from protruding into the ID of the Bushing.
  • Large radius exit hole.
  • Used to protect through-holes. Eliminate sharp edges so wires are protected.
  • Absorb vibration, and cushion and insulate wires.
  • Can be used as bushing for rotating shafts.
  • Bushing inserts into mounting hole with fingertip pressure.

QuickSpecs

Material Nylon 6/6
Certifications ru Recognized under the Component Program of Underwriters’ Laboratories File E15331
csa Certified by the Canadian Standards Association File 8919
Flammability Rating 94V-2
Temperature Range -.4°F (-18°C) to 221°F (105°C)

Competitor Cross Reference
