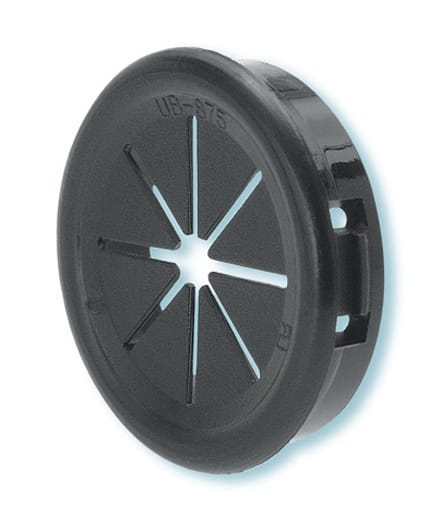

Heyco® Shorty Universal Bushings

Simple Locking Step for Panel Thickness up to .062″ (1,6 mm) Mounting Hole Diameter Range: .500″ (12,7 mm) to 1.093″ (27,8...

Specifications

Part number and specification

MOUNTING HOLE DIAMETER		PART NO.	DESCRIPTION	PART DIMENSIONS

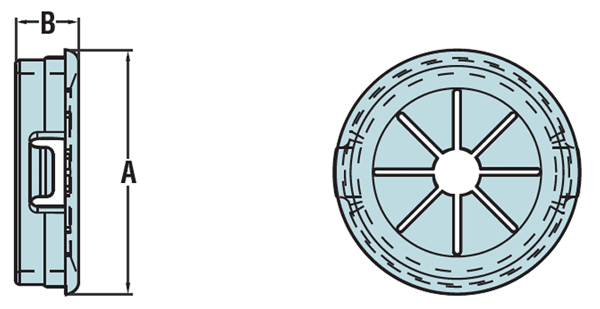

MOUNTING HOLE DIAMETER		Black		Maximum Cable/ Bundle Diameter		A Head Diameter		B Overall Height
in.	mm.	Black		in.	mm.	in.	mm.	in.	mm.
.500	12,7	2858	SUB 500	.31	7,6	.60	15,2	.25	6,4
.625	15,9	2861	SUB 625	.44	11,1	.73	18,5
.750	19,1	2862	SUB 750	.50	12,7	.84	21,3
.875	22,2	2863	SUB 875	.56	14,3	.94	23,8
1.000	25,4	2864	SUB 1000	.75	19,0	1.06	27,0
1.093	27,8	2158	SUB 1093	.81	20,6	1.16	29,4

Standard color black. Consult Heyco for white and other colors.

For use in mounting panels .062″ (1,6 mm) and thinner.
Absorb vibration and cushion and insulate cables, tubing, hoses or shafts with limited internal clearance.
Flexible shutters adjust to accommodate and support any shape from .125″ (3,2 mm) to a maximum cable/bundle diameter of .812″ (20,6 mm).
Fingertip pressure snap-locks the bushing into its mounting hole.

Material		Nylon 6/6
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E15331
Certifications		Certified by the Canadian Standards Association File 8919
Flammability Rating		94V-2
Temperature Range		-.4°F (-18°C) to 221°F (105°C)
