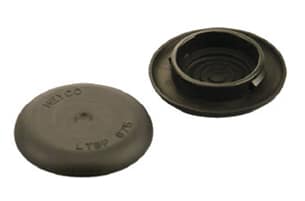

HEYCo-molded™ Liquid Tight Break-Thru Plugs

Mounting Hole Diameter Range: .500″ (12,7 mm) to 1.500″ (38,1 mm) Small Packs Available
Download Datasheet
Specifications

Part number and specification


PANEL DIMENSIONS CABLE DIA. RANGE PART NO. PACKAGING DESCRIPTION PART DIMENSIONS CAD
Thickness at Locking Finger Steps Mounting Hole Diameter* Black BULK (Standard) SMALL PACK** A Head Diameter B Overall Height
in. mm. in. mm. in. mm. in. mm. in. mm.

With Five Locking Finger Steps — For Panels up to .063" (1,6 mm) Thick
.020 .032 .040 .048 .063 0,5 0,8 1,0 1,2 1,6 .500 12,7 .080 - .200 2,0 - 5,1 C2008 500 10 LTBP 500-063 .92 23,4 .32 8,1 CAD
.625 15,9 .130 - .375 3,3 - 9,5 C2012 500 10 LTBP 625-063 1.03 26,2 CAD
.750 19,1 .175 - .400 4,4 - 10,2 C2016 500 10 LTBP 750-063 1.15 29,2 CAD
.875 22,2 .130 - .450 3,3 - 11,4 C2020 500 10 LTBP 875-063 1.28 32,5 CAD
1.000 25,4 .200 - .715 5,1 - 18,2 C2022 500 10 LTBP 1000-063 1.43 36,3 CAD
1.093 27,8 .250 - .765 6,4 - 19,4 C2024 500 10 LTBP 1093-063 1.53 38,9 CAD

With Seven Locking Finger Steps — For Panels from .063" (1,6 mm) to .250" (6,4 mm) Thick
.063 .080 .094 .125 .157 .200 .250 1,6 2,0 2,4 3,2 4,0 5,1 6,4 .500 12,7 .080 - .200 2,0 - 5,1 C2058 500 10 LTBP 500-250 .92 23,4 .63 15,9 CAD
.625 15,9 .130 - .375 3,3 - 9,5 C2062 500 10 LTBP 625-250 1.03 26,2 CAD
.750 19,1 .175 - .400 4,4 - 10,2 C2066 500 10 LTBP 750-250 1.15 29,2 CAD
.875 22,2 .130 - .450 3,3 - 11,4 C2070 500 10 LTBP 875-250 1.28 32,5 CAD
1.000 25,4 .200 - .715 5,1 - 18,2 C2072 500 10 LTBP 1000-250 1.43 36,3 CAD
1.093 27,8 .250 - .765 6,4 - 19,4 C2074 500 10 LTBP 1093-250 1.53 38,9 CAD
1.375 34,9 .300 - .950 7,6 - 24,1 C2080 500 10 LTBP 1375-250 1.80 45,7 .67 17,0 CAD
1.500 38,1 .375 - 1.060 9,5 - 26,9 C2082 500 10 LTBP 1500-250 1.93 49,0 CAD
Standard color black. Consult Heyco for other colors. *Consult Heyco for other Mounting Hole Diameters. Our Axcell Rapid Response Team is ready to meet your requirements. **To order Small Packs, please add the suffix -P to Part No., e.g., C2008-P



Features

  • These co-molded nylon and elastomer parts function as Liquid Tight Plugs with an IP 67/68 rating, yet can be pierced by round wire, cable or tubing to function as Liquid Tight Bushings with the same resulting IP 67/68 rating.
  • Certified by UL under UL 635
  • For use in panels as thin as .020″ (0,5 mm) and as thick as .250″ (6,4 mm).
  • Provide liquid tight closure when used as a plug. When pierced, functions as a liquid tight bushing that converts raw edged holes to smooth, neat, insulated holes.
  • Used as a liquid tight bushing, HEYCo-molded Liquid Tight Break-Thru Plugs insulate and mechanically protect electrical and telecommunications cable, tubing, hose, rope, and utility lines.
  • Locking fingers snap into holes with fingertip pressure.
  • Locking fingers in fractional increments up to the maximum panel thickness.
  • Available in multiple sizes for use in .500˝ (12,7 mm) to 1.500˝ (38,18 mm) diameter holes.

QuickSpecs

Material Nylon 6/6 and TPE
Certifications ru Recognized under the Component Program of Underwriters’ Laboratories File E15331
Flammability Rating HB
Temperature Range -40°F (-40°C) to 212°F (100°C)
IP Rating IP 67/68
