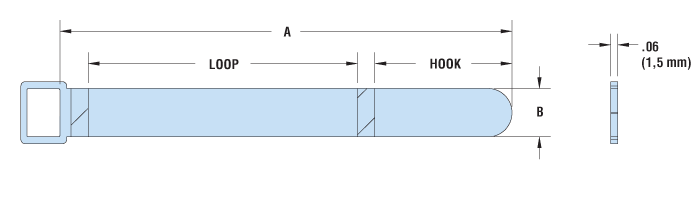

| PART NO. | DESCRIPTION | PART DIMENSIONS | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A Length | B Width | |||||||||||
| Black | White | Gray | Orange | Yellow | Red | Blue | Green | |||||
| in. | mm. | in. | mm. | |||||||||
| 16190 | 16191 | 16192 | 16193 | 16194 | 16195 | 16196 | 16197 | HLCT-3/4-6 | 6.0 | 152 | 0.75 | 19 |
| 16206 | 16207 | 16208 | 16209 | 16210 | 16211 | 16212 | 16213 | HLCT-3/4-12 | 12.0 | 305 | ||
| 16222 | 16223 | 16224 | 16225 | 16226 | 16227 | 16228 | 16229 | HLCT-3/4-18 | 18.0 | 457 | ||
| 16238 | 16239 | 16240 | 16241 | 16242 | 16243 | 16244 | 16245 | HLCT-1-9 | 9.0 | 229 | 0.98 | 25 |
| 16254 | 16255 | 16256 | 16257 | 16258 | 16259 | 16260 | 16261 | HLCT-1-12 | 12.0 | 305 | ||
| 16270 | 16271 | 16272 | 16273 | 16274 | 16275 | 16276 | 16277 | HLCT-1-15 | 15.0 | 381 | ||
| 16286 | 16287 | 16288 | 16289 | 16290 | 16291 | 16292 | 16293 | HLCT-1-20 | 20.0 | 508 | ||
| 16302 | 16303 | 16304 | 16305 | 16306 | 16307 | 16308 | 16309 | HLCT-1-1/2/11 | 11.0 | 280 | 1.50 | 38 |
| 16318 | 16319 | 16320 | 16321 | 16322 | 16323 | 16324 | 16325 | HLCT-2-15 | 15.0 | 381 | 1.97 | 50 |
| Material | Nylon |
|---|---|
| Peel Durability | >5000 Cycles |
| Temperature Range | -4°F (-20°C) to 176°F (80°C) |
