Heyco®-Tite Liquid Tight Cordgrips for Pre-assembled Cables

Part number and specification

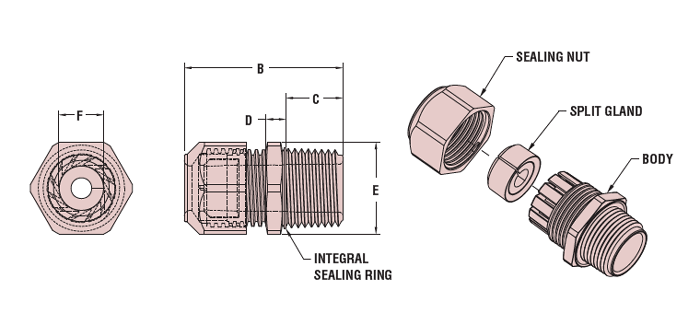

CABLE DIAMETER RANGE				PART NUMBER		DESCRIPTION	PART DIMENSIONS
Minimum		Maximum		Black	Gray		A Clearance Hole Dia.		B Max. O.A. Length		C Thread Length		D Wrenching Nut Thickness		E Wrenching Nut Flat Size		F Sealing Nut Inside Dia.
in.	mm.	in.	mm.	Black	Gray		in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
NPT Hubs
.210	5,3	.334	8,5	M3200GBH	M3201GBH	LTCG LL 1/2 NPT 8.5 MM Split	.875	22,2	1.68	42,7	.44	11,2	.25	6,4	1.06	27,0	.56	14,2
.210	5,3	.334	8,5	M3234GBH	M3235GBH	LTCG 3/4 NPT 8.5 MM Split	1.109	28,2	2.00	50,8	.62	15,7	.25	6,4	1.30	33,0	.72	18,3
.138	3,5	.610	15,5	M3234GBJ	M3235GBJ	LTCG 3/4 NPT Split Oval*
.315	8,0	.315	8,0	M3234GDB	M3235GDB	LTCG 3/4 2-8.0 MM Split**
.250	6,4	.334	8,5	M8437GBH	M8438GBH	LTCG 1 NPT 8.5 MM Split	1.326	33,7	2.41	61,2	.76	19,3	.30	7,6	1.73	43,9	1.01	25.7
.250	6,4	.334	8,5	M4524GBH	M4525GBH	LTCG 1-1/4 NPT 8.5 MM Split	1.680	42,7	2.69	68,3	.78	19,8	.30	7,6	2.05	52,1	1.27	32,3
PG Hubs
.210	5,3	.334	8,5	M3219GBH	M3220GBH	LTCG 16 8.5 MM Split	.886	22,5	1.68	42,7	.44	11,2	.25	6,4	1.06	27,0	.56	14,2
.210	5,3	.334	8,5	M3222GBH	M3223GBH	LTCG 21 8.3MM Split	1.115	28,3	1.89	48,0	.52	13,2	.25	6,4	1.30	33,0	.72	18,3
.250	6,4	.334	8,5	M3225GBH	M3226GBH	LTCG 29 8.5MM Split	1.470	37,3	2.23	56,6	.57	14,5	.30	7,6	1.73	43,9	1.01	25,7
.250	6,4	.334	8,5	M3204GBH	M3203GBH	LTCG 36 8.5MM Split	1.875	47,6	2.39	60,7	.47	11,9	.31	7,9	2.05	52,7	1.27	32.3
Metric Hubs
.210	5,3	.334	8,5	M3198GBH	M3199GBH	LTCG LL M20 8.5MM Split	.787	20,0	1.65	41,9	.41	10,4	.25	6,4	1.06	26,9	.56	14,2
.210	5,3	.334	8,5	M4344GBH	M4345GBH	LTCG M25 8.5MM Split	.985	25,0	1.89	48,0	.52	13,2	.25	6,4	1.30	33,0	.72	18,3
.250	6,4	.334	8,5	M4348GBH	M4349GBH	LTCG M32 8.5MM Split	1.260	32,0	2.23	56,6	.58	14,7	.30	7,6	1.73	43,9	1.01	25,7
.250	6,4	.334	8,5	M4352GBH	M4353GBH	LTCG M40 8.5MM Split	1.575	40,0	2.39	60,7	.47	11,9	.31	7,9	2.05	52,7	1.27	32,3

Standard color black. *Oval shaped gland opening; not UL Recognized. **Includes assembled nylon locknut

Features

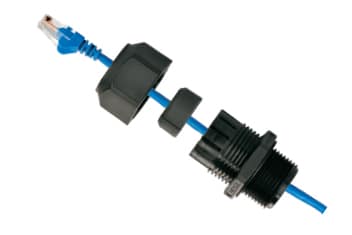

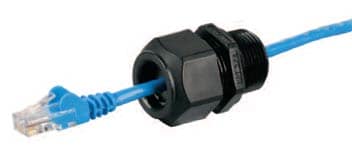

Split Glands are designed for application to the cable after the cable has passed through the LTCG; e.g., RJ45 cable with Cat5e termination.
Simply pass the cable termination through the LTCG body, apply Split Gland to the cable, and insert the gland/cable assembly into the LTCG fingers. Then tighten the Sealing Nut to achieve a liquid tight seal.
Approved for NEMA 4, 4X, 6 and 6P applications.
For other cable/termination configuration sizes, and Pg and Metric hub threads, please consult Heyco.
Integral Sealing Ring ensures a superior seal at the clearance or threaded mounting hole location, every time.

QuickSpecs

Material		Nylon 6/6 w/TPE Sealing Gland
Certifications		Recognized under the Component Program of Underwriters’ Laboratories File E51579 to both Canadian and U.S. Requirements Approved for NEMA 4, 4X, 6 and 6P Applications
Flammability Rating		94V-2 – Consult factory for V0 material
Temperature Range		Static -40°F (-40°C) to 239°F (115°C)
Temperature Range		Dynamic -4°F (-20°C) to 212°F (100°C)
IP Rating		IP 68 (70 PSI, 5 BAR)
