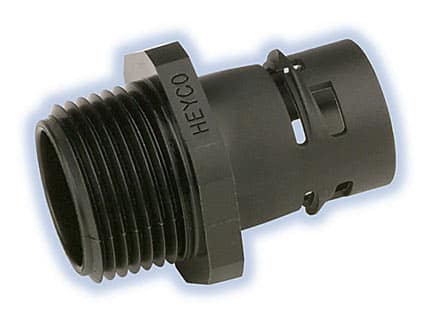

Heyco-Flex™ III Liquid Tight Fittings Straight-Thru, NPT Hubs

Straight-Thru, Snap-In and NPT Hubs For Flexible, Nonmetallic Liquid Tight Tubing

Specifications

Part number and specification

FITS TUBING TRADE SIZE	PART NO.	DESCRIPTION	THREAD SIZE	PART DIMENSIONS

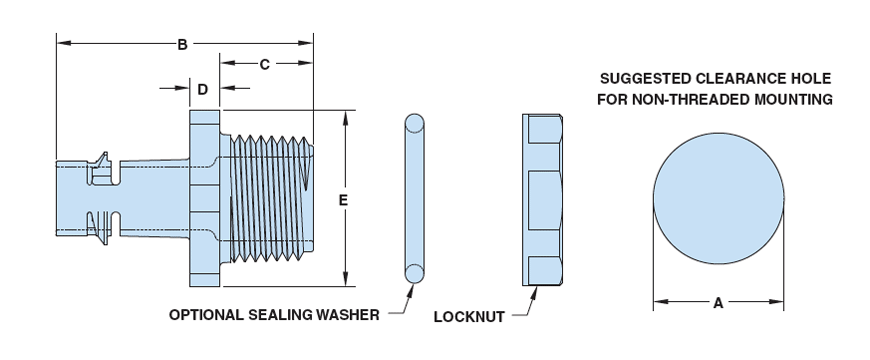

				A Clearance Hole		B Max O.A. Length		C Thread Length		D		E
										Wrenching
	Black									Nut Thk.		Flat Size
	Black			in.	mm.	in.	mm.	in.	mm.	in.	mm.	in.	mm.
Snap-In Hub*
1/2	1952	HF3C 1/2-S	N/A	.875	22,2	1.38	35,1	.39	9,9	.09	2,3	.97	24,6
NPT Hubs
3/8	9146	HF3C 3/8	1/2	.875	22,2	1.72	43,7	.63	16,0	.20	5,1	1.16	29,5
1/2	9147	HF3C 1/2	1/2	.875	22,2	1.72	43,7	.63	16,0	.20	5,1	1.16	29,5
3/4	9148	HF3C 3/4	3/4	1.109	28,2	1.84	46,7	.63	16,0	.20	5,1	1.36	34,5
1	9149	HF3C 1	1	1.375	34,9	1.99	50,6	.78	19,8	.20	5,1	1.62	41,1

* Part is not liquid tight or UL Recognized. "Thread Length" indicates length below flange.

For use with Heyco-Flex III Corrugated Tubing in trade sizes 3/8˝ through 1˝.
Nontoxic and UV resistant.
Rated for NEMA 4 and 4X applications when used with Heyco-Flex III Tubing.
Rated for NEMA Type 3R applications.
Easy, permanent assembly between the tubing and fittings: push the tubing over the fitting ferrule until the tubing “clicks” into place.
Lightweight and lower installed cost.
Quick and easy installation.
Suitable for use in high vibration or flexing applications (automotive equipment, fiber optics, computer & peripherals, lab equipment, robotics, etc.).
Resist salt water, weak acids, gasoline, alcohol, oil, grease, and common solvents. This feature is not assessed by UL certification or testing.
For use in both wet and dry applications.
If using a tapped hole, Teflon® tape is needed on the threads of the connector, for all other applications an O-ring and Locknut are needed to attain liquid tight.
Use of an O-ring may be required for a complete liquid tight system with a non-threaded mounting hole.
Locknuts included with Straight-thru fittings.
Other locknuts available:
Metal locknuts: NPT, PG, and Metric.

Nylon locknuts: NPT, PG, and Metric.
Patented.

Material		Nylon 6/6
Certifications		Certified to both Canadian and U.S. Requirements File E121095
Flammability Rating		94V-2
Temperature Range		-22°F (-30°C) to 221°F (105°C)
IP Rating		IP 64

Competitor Cross Reference

Use our cross-reference tool to find equivalent Heyco parts that match competitor products, ensuring compatibility and performance.
